Flow Battery Technology Guide
(COMSOL Simulation and Flow Optimization Studies Based on Titanium-Manganese and All-Vanadium Systems)
1. Flow Battery Definition and Core Principles
A flow battery is a device that stores electrical energy through the valence state changes of redox-active substances in the electrolyte. Its core feature is the decoupling of energy storage and power output:
- Electrochemical Reaction: Taking the titanium-manganese (Ti-Mn) system as an example, the oxidation-reduction reaction of Mn²⁺/Mn³⁺ occurs at the positive electrode, while the Ti³⁺/Ti⁴⁺ reaction occurs at the negative electrode, achieving charge balance through a proton exchange membrane (refer to arXiv papers).

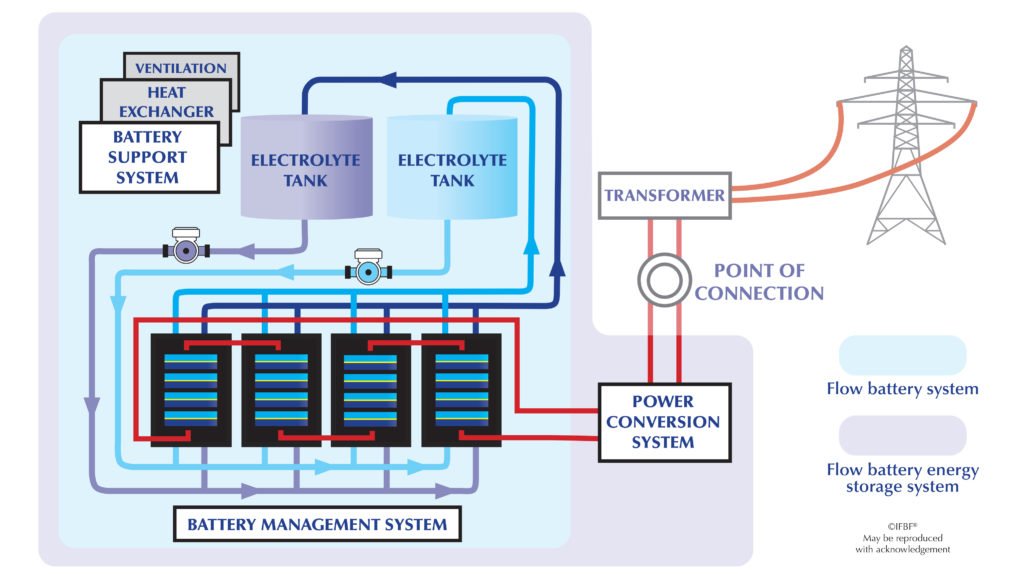

- Electrolyte Circulation: The electrolyte is pumped from a tank into the stack and returns to the tank after the reaction is completed in the flow channel, with the circulation efficiency directly affected by flow velocity and flow field design (refer to WIP papers).
2. Flow Battery Core Components and Technical Parameters
| Component | Function and Optimization Direction |
|---|---|
| Electrolyte | – All-vanadium system: V²⁺/V³⁺ (negative) and V⁴⁺/V⁵⁺ (positive) sulfate solution, concentration determines energy density – Titanium-manganese system: High conductivity titanium salt and manganese salt solution, pH must be controlled to prevent precipitation (refer to arXiv) |
| Flow Field Design | – Bipolar plates with etched flow fields (serpentine/finger) enhance mass transfer efficiency – 3D printed topology-optimized flow paths reduce pump power losses (WIP papers) |
| Electrode | – Carbon felt electrode compression ratio increased to 20-30%, conductivity improved by 40% (arXiv papers) – Porosity regulation enhances the reactive interface |
| Membrane Material | – Perfluorosulfonic acid membrane (Nafion) used for all-vanadium systems; low-cost anion exchange membranes can be attempted for titanium-manganese systems |
3. Flow Battery Technical Advantages
- Safe and Reliable: Aqueous electrolytes pose no explosion risk, and the titanium-manganese system operates in a wide temperature range (-20 to 50 ℃).
- Cycle Life: All-vanadium systems > 15,000 cycles (capacity retention rate 90%), titanium-manganese systems > 8,000 cycles.
- Flexible Expansion: Power modules (stacks) and energy modules (tanks) can be expanded independently, reaching hundreds of megawatts in a single system.
- Efficiency Breakthrough: After optimizing flow rate (0.5-1.5 L/min), the coulombic efficiency of the all-vanadium system reaches 98%, with a voltage efficiency > 85% (WIP experimental data).
4. Flow Battery Typical Application Scenarios
- Wind-Solar Storage and Distribution: 10MW/40MWh all-vanadium systems smooth wind power output fluctuations (Inner Mongolia demonstration project).
- Industrial Load Peaks: Titanium-manganese batteries used for balancing 24-hour loads in steel mills, reducing demand charges.
- Island Microgrids: A 50kW/200kWh flow battery system combined with photovoltaics provides off-grid power.
- Backup Power: Data centers using zinc-bromine flow batteries instead of diesel generators.
5. Flow Battery Key Influencing Factors
- Flow Parameters:
- Flow Rate Optimization: The optimal flow rate for all-vanadium batteries is 0.8-1.2 cm/s; excessive flow increases pump consumption, while too low flow leads to concentration polarization (WIP experiments).
- Flow Path Pressure Drop: The pressure drop in serpentine flow paths is 18% lower than in parallel paths, but uniformity in mass transfer must be balanced (WIP flow field study).
- Electrolyte Characteristics:
- The viscosity of vanadium electrolyte reduces pump power by 25% for every 10% decrease (WIP data).
- Adding 0.5% phosphate stabilizer to titanium-manganese electrolyte reduces capacity degradation rate by 60% (arXiv).
- Operating Temperature:
- The optimal working temperature for all-vanadium systems is 15-35 ℃; exceeding this range may cause V₂O₅ precipitation.
6. Flow Battery Cutting-edge Research Directions
- Development of New Electrolytic Pairs: Through COMSOL multiphysics simulation, the titanium-manganese system discovered that reducing membrane potential demand can enhance efficiency (arXiv).
- Smart Operations and Maintenance: Machine learning predicts the state of the electrolyte and dynamically adjusts flow rates and charging strategies.
- Ultra-thick Electrodes: 3mm carbon felt electrodes paired with gradient flow field designs increase power density to 0.8 W/cm².
- Waste Heat Utilization: Research on the temperature-sensitive properties of titanium-manganese electrolytes explores coupling schemes for waste heat recovery between 50-80 ℃.
7. Flow Battery Selection Recommendations
| Scenario | Recommended Type | Core Advantages |
|---|---|---|
| Energy Storage over 8 Hours | All-vanadium flow battery | Long cycle life, easily recyclable electrolyte. |
| Cold Regions | Titanium-manganese flow battery | Excellent low-temperature performance (operates normally at -30 ℃). |
| Low Cost Demand | Iron-chromium flow battery | Raw material costs are 60% lower than all-vanadium. |
| Mobile Energy Storage | Zinc-bromine flow battery | Energy density reaches 70 Wh/L, suitable for container deployment. |
Research Tool: COMSOL Multiphysics has been widely used for flow field-electrochemistry coupling simulation, accurately predicting the relationships among flow rate, concentration distribution, and battery performance (methodology from arXiv papers).
This guide integrates innovative achievements of the titanium-manganese system with the engineering experience of traditional all-vanadium systems, providing a systematic reference for the design, selection, and operation of flow batteries.
