Solar wind hybrid street light: A Comprehensive Purchasing Guide from Leading Solar Street Light Manufacturers

Table of Contents

Hot Sale Solar wind hybrid street light

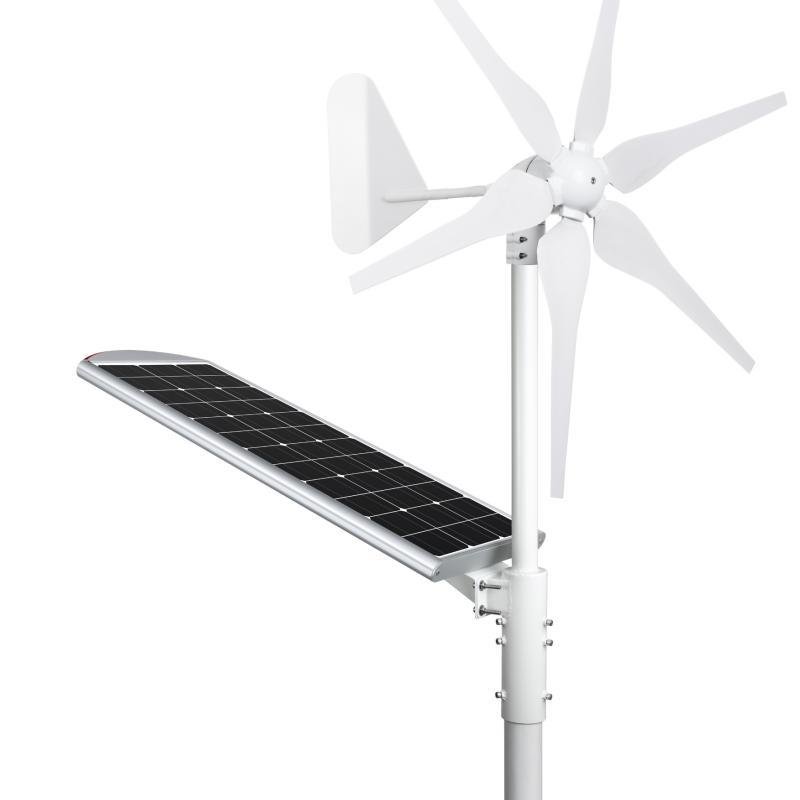

Solar wind hybrid street  light
  • 12Hours Lighting
  • 10000-15000LM
  • IP66 waterproof
  • 5～7 rainy days operation

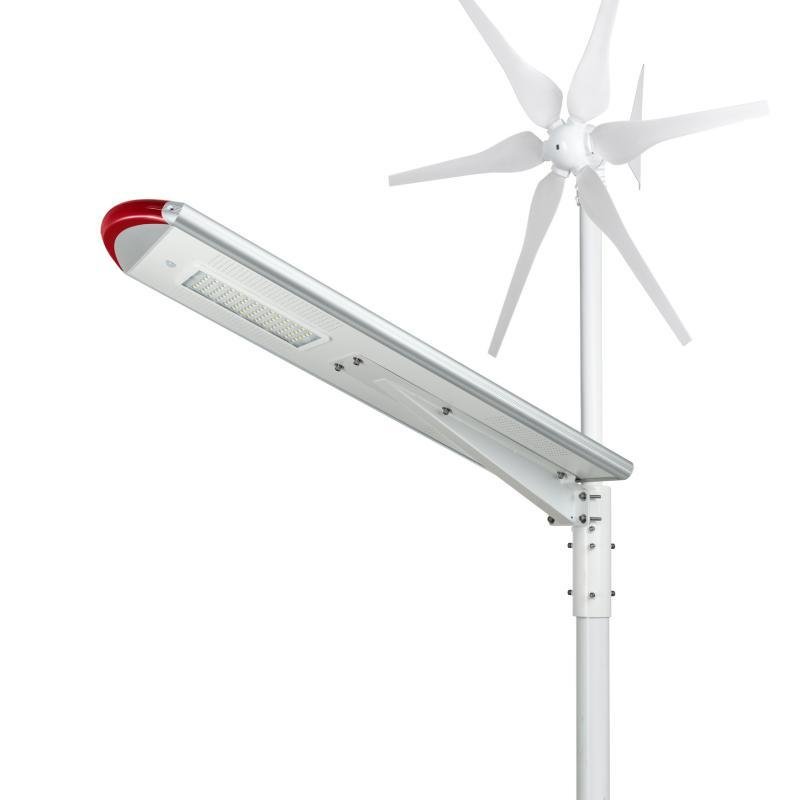

Solar wind hybrid street  light
  • 5～7 rainy days operation
  • 12M Remote control
  • 12Hours Lighting
  • 3000~6500k

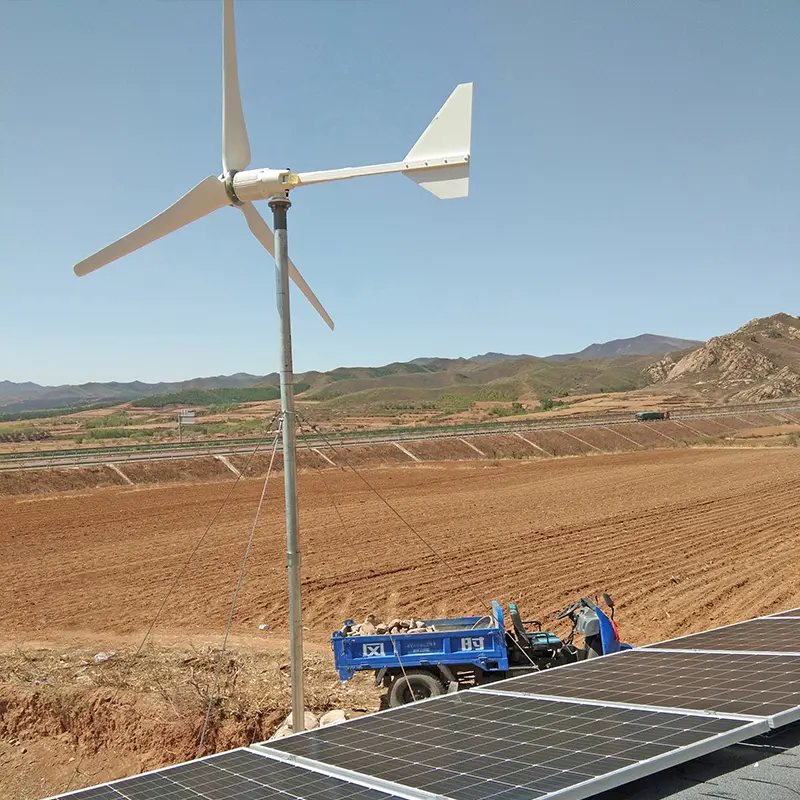

Solar Hybrid Turbine Wind Power Generation

Solar and Wind Energy Storage Systems is an energy storage solution that combines two renewable energy sources, solar and wind, to improve the reliability and economics of energy systems

Key Features

Solar Wind Hybrid Street Lights are advanced lighting systems that combine solar energy and wind energy, two renewable resources, to provide more reliable and efficient lighting solutions. Here’s a summary of their main features :

Dual Energy Supply:

  • Solar Panels: During the day, these panels absorb sunlight, converting solar energy into electricity, which is stored in batteries.
  • Wind Turbines: They generate electricity from wind energy, especially during nighttime or on cloudy days when solar energy is insufficient, providing supplementary power.

System Components:

  • Solar Panels: Typically installed at the top of the light pole or integrated into the pole structure to convert solar energy into electrical power.
  • Wind Turbines: Usually mounted at the top of the pole or nearby, they harness wind energy to generate electricity.
  • Battery Storage: Rechargeable batteries store energy collected from solar and wind sources for use at night or during rainy periods.
  • Controller: Manages the charging and discharging process of the solar panels and wind turbines, switching power sources as needed to ensure stable system operation.
  • Light Fixture: Generally employs LED technology due to its efficiency and longevity.

Smart Management:

  • Real-time Monitoring and Control: The system uses a controller to monitor parameters like the voltage of the batteries, environmental brightness, and temperature, allowing for precise lighting control.
  • Automatic Switching Function: The controller can automatically select the most suitable power source based on real-time energy supply conditions, ensuring continuous and stable lighting.
  • Communication Components: Modern designs may feature Zigbee or other wireless communication components for remote monitoring and management.

Solar wind hybrid street lights​ Guide

Understanding Basic concept of Solar wind hybrid street lamp

To choose solar street lights, it is essential to understand several key concepts. The first is lumens and watts, the second is lux, the third is color temperature.  Lumens represent the output brightness. Lux signifies the actual brightness of illumination. Color temperature refers to the color of light emitted by a light source.

Lumen Requirements for Outdoor Street Lights

The lumen output needed for outdoor street lights varies based on factors such as pole height, road width, and ambient light conditions. It’s essential to consider recommended illumination levels for different road types:

  1. Residential Streets: 5,000 to 12,000 lumens per light.
  2. Main Roads and Highways: Typically require 10,000 to 15,000 lumens for adequate safety.

Lumen Output by Pole Height:

  • 6 m Height: 6,000 lumens
  • 8 m Height: 8,000 lumens
  • 10 m Height: 10,000 lumens
  • 12 m Height: 12,000 lumens
  • 14 m Height: 15,000 lumens
  • 16 m Height: 18,000 lumens
  • 20 m Height: 25,000 lumens

Selecting the appropriate lumens and watts can significantly enhance both lighting quality and energy efficiency. For detailed guidance and examples, please refer to the link: Lumens vs watts: lumens to watts conversion chart

Lux signifies the actual brightness of illumination, measuring light flux per unit area, and is commonly used to assess lighting effectiveness and suitability.

Highways:

  • First-class and Second-class: 20 lx (low) / 30 lx (high), uniformity: 0.4.
  • Third-class: 15 lx (low) / 20 lx (high), uniformity: 0.4.
  • Fourth-class: 10 lx (low) / 15 lx (high), uniformity: 0.3.

Values apply to asphalt; concrete requirements can be reduced by up to 30%.

Urban Roads:

  • Expressways and Main Roads: 20 lx (low) / 30 lx (high), uniformity: 0.4.
  • Secondary Roads: 15 lx (low) / 20 lx (high), uniformity: 0.4.
  • Side Roads: 10 lx (low) / 15 lx (high), uniformity: 0.3.

Rural Roads:

  • Primary Roads: 10 lx (low) / 15 lx (high), uniformity: 0.3.
  • Side Streets and Lanes: 5 lx (low) / 8 lx (high).
  • Public Activity Squares: 10 lx (low) / 15 lx (high).

For more details, please refer to the link: [What is Lux in Lighting? Solar Street Lighting Lux Level standard]

Choosing the right color temperature for solar street lights is crucial for achieving the desired ambiance and visibility. Color temperature is measured in Kelvin (K) and affects how light appears; warmer temperatures (below 3000K) emit a yellowish light, creating a cozy atmosphere, while cooler temperatures (above 5000K) produce a bluish-white light that enhances visibility and safety.

When selecting the color temperature for solar street lights, the following standards are worth considering:

Road lighting color temperature suggestions:
Highway lighting: not more than 5000K, usually choose low and medium color temperature, but in some projects can be used 5700K or higher.

Airport road lighting: no more than 4000K, glare control lens should be added.

Residential road lighting: Low to medium color temperature is recommended, usually kept below 4000K.

Rain and fog road lighting: it is recommended to use low color temperature lamps, the recommended range is 2700K-3500K.

Road lighting in commercial areas: High color rendering index (CRI), low to medium color temperature light sources are recommended.

Parking lot lighting: 5700K-6500K color temperature is recommended.

Garden and industrial lighting: Warm color temperature 2700K-3000K is recommended to create a warm and relaxing atmosphere.

For more details, please refer to the link: [Choosing the Right Color Temperature for Your Solar Street Light Project]

How to choose Solar wind hybrid street light

After understanding the basic parameters of solar street lights, we can determine the appropriate height and spacing to determine the required quantity according to the project application scenario and the required standards of the project, and then choose the appropriate brightness of solar street lights, pole height, battery type, etc.

Installation Distance Guidelines for Street Lights

  1. Road Width: 3-4m; Pole Height: 3-4m
    Distance Between Poles: 10m

  2. Road Width: 5-7m; Pole Height: 5-7m
    Distance Between Poles: 10-25m

  3. Road Width: 8-12m; Pole Height: 8-12m
    Distance Between Poles: 30-40m

  4. Main Traffic Arteries (20m wide); Pole Height: 12-14m
    Distance Between Poles: At least 40m

For further details, please refer to the link: [Solar Street Light Height and Distance Spacing Calculation]

Lithium iron phosphate battery (LiFePO4): Despite the higher price, it provides higher energy density, longer service life (usually up to 8-10 years) and better stability, suitable for solar street lights.
NiMH battery (NiMH): environmental protection is better, but more maintenance, suitable for high energy consumption equipment, not suitable for low power recycling of solar lamps.
Nickel-cadmium batteries (NiCd): Despite their low price, they are not recommended for solar street lights because of the “memory effect” and toxicity problems.
Lead-acid batteries: although low cost and stable voltage, but large volume, short service life, frequent maintenance.
Gel cells: A modified version of lead-acid batteries that performs better but may be more expensive and suitable for extreme climatic conditions.

For further reading, please refer to the link: [Solar Street Lights Battery Comprehensive guide]

Material Requirements:

  • The material of solar light poles directly impacts their lifespan.
  • Commonly used materials like Q230 steel are susceptible to corrosion, so they are often galvanized for enhanced corrosion resistance.
  • Hot-dip galvanized poles offer better corrosion protection compared to cold-dip galvanized ones.
  • Some poles are made of stainless steel or undergo anodizing for superior corrosion resistance, albeit at a higher cost.

Wall Thickness Requirements:

  • Besides material, wall thickness is crucial for wind resistance and load-bearing capacity.
  • Wall thickness should be determined based on the specific installation scenario to ensure the pole’s longevity.
  • Recommended wall thickness varies based on pole height:
    • 2-4m poles: Minimum 2.5cm
    • 4-9m poles: Minimum 4-4.5cm
    • 8-15m poles: Minimum 6cm
  • Areas prone to strong winds may require thicker wall thickness for added durability.

Considering these details, users can select solar light poles with suitable materials and wall thickness to ensure longevity and reliability based on their budget and installation requirements.

For further reading, please refer to the link: [Guide to Selecting Solar Street Light Poles]

Solar wind hybrid street  lighting Benefits

High Reliability:

  • Dual Assurance: The combination of solar and wind energy provides backup power, keeping the street lights operational even in cloudy or windless conditions.
  • Continuous Lighting: In extreme weather situations, such as prolonged rain or calm conditions, the system can still maintain illumination using grid power if available.

Energy Efficiency:

  • Maximized Energy Utilization: By integrating solar and wind energy, the system maximizes the use of renewable resources, reducing reliance on the electrical grid.
  • Lower Operating Costs: Over time, solar wind hybrid street lights have significantly lower energy costs compared to traditional street lights, as they can often operate independently.

Environmental Friendliness:

  • Reduced Carbon Emissions: Utilizing clean energy diminishes fossil fuel consumption, lowering both carbon and other harmful gas emissions.
  • Sustainable Development: This system adheres to sustainable development principles, helping to minimize environmental pollution and protect ecosystems.

Low Maintenance Requirements:

  • Simplified Maintenance: The use of LED lights and rechargeable batteries reduces the need for frequent bulb and battery replacements, lowering maintenance costs.
  • Smart Protection: The controller includes various protective functions, such as overcharge, over-discharge, and reverse connection protection, extending the system’s lifespan.

Flexibility:

  • Ease of Installation: The system can be easily installed in various environments without the need for complex electrical grid connections and wiring, making it ideal for remote or hard-to-access areas.
  • Strong Adaptability: It can be optimized based on local climate conditions and energy needs, ensuring effective operation under diverse environmental conditions.

Economic Benefits:

  • Long-term ROI: Despite higher initial investments, solar wind hybrid street lights offer a high return on investment through energy savings and reduced maintenance costs.
  • Dynamic Payback Period: Typically ranges from 9 to 15 years, with a static payback period of 6 to 8 years, depending on system configuration and usage conditions.

Technological Innovation:

  • MPPT Control: Utilizing Maximum Power Point Tracking technology improves the energy conversion efficiency of solar panels and wind turbines.
  • Hybrid Storage: Employing a combination of lead-acid batteries and supercapacitors enhances the system’s stability and reliability.
