Solar street light with cctv camera

Solar street light with cctv camera: A Comprehensive Purchasing Guide from Leading Solar Street Light Manufacturers

Hot Sale Solar Security Light with CCTV Camera

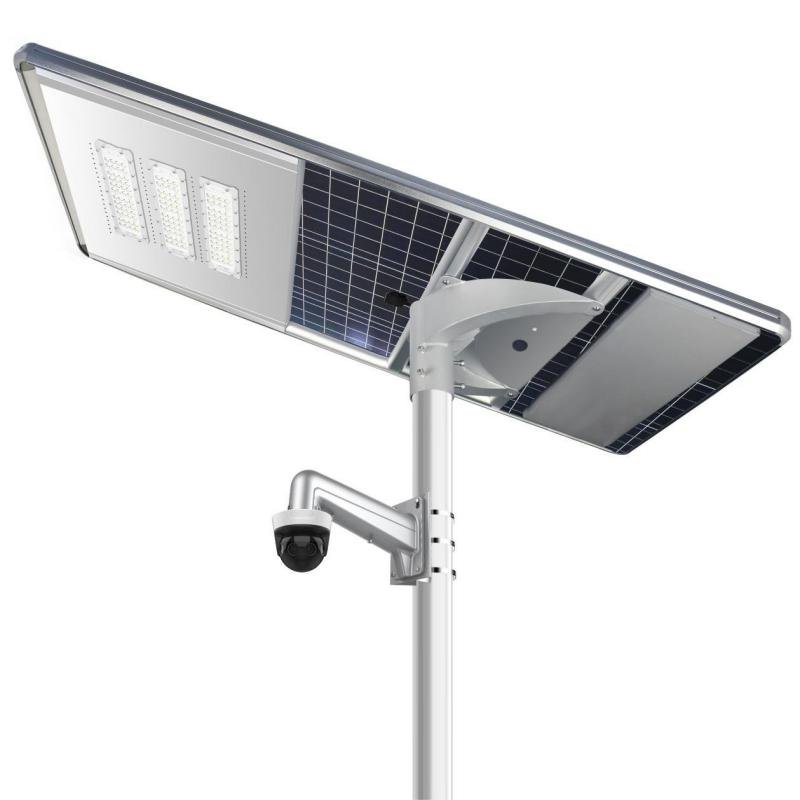

Solar street light with Wifi camera Customized style

Of-grid lighting solution designed
24 Hours Video Monitoring
IP66 waterproof
5~7 rainy days operation

S3C Solar Security Light with CCTV Camera

12 Hours Luminary Time
24 Hours Video Monitoring
1,000,000-pixel camera

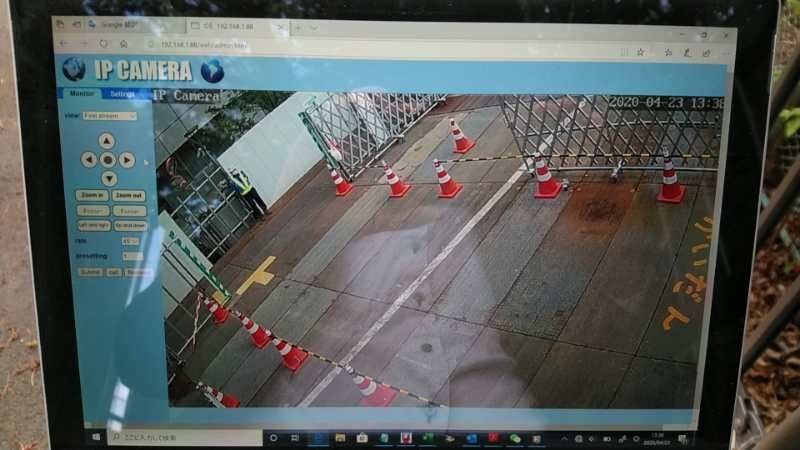

APP monitor on the phone

Solar wifi camera

Key Features

Integrated Design: The integration of solar street lights with CCTV cameras creates a compact unit, reducing installation space and complexity.
Solar Power: Solar street lights utilize photovoltaic panels to absorb solar energy during the day, converting it into electricity stored in batteries to power nighttime lighting and CCTV cameras.
Intelligent Control System: The built-in solar controller features light and time control functions, automatically turning the street lights and CCTV cameras on and off based on light intensity and time.
Multiple Configuration Options: Solar street lights can be installed independently, with each light having its own photovoltaic panel, or configured to share a central power source.
Lightning, Moisture, and Corrosion Resistance: The overall design includes protection against lightning, moisture, and corrosion, ensuring stable operation in harsh environments.
Remote Monitoring and Management: Through control units and intelligent management DC-AC inverters, the entire system can be monitored and managed remotely, allowing real-time tracking of the photovoltaic components’ power generation, battery station storage, system power voltage, and current.
High-Capacity Batteries: Using lithium iron phosphate batteries, the lights have over 1500 charge and discharge cycles, good waterproof performance, and a lifespan exceeding 25 years.
Strong Environmental Adaptability: They operate effectively in temperature ranges from -25°C to 50°C, adapting to various climate conditions.

Solar Security Light with Camera Guide

Understanding Basic concept of Solar Security Light

To choose solar street lights, it is essential to understand several key concepts. The first is lumens and watts, the second is lux, the third is color temperature. Lumens represent the output brightness. Lux signifies the actual brightness of illumination. Color temperature refers to the color of light emitted by a light source.

How to choose the right brightness of Solar Security Light

Lumen Requirements for Outdoor Street Lights

The lumen output needed for outdoor street lights varies based on factors such as pole height, road width, and ambient light conditions. It’s essential to consider recommended illumination levels for different road types:

Residential Streets: 5,000 to 12,000 lumens per light.
Main Roads and Highways: Typically require 10,000 to 15,000 lumens for adequate safety.

Lumen Output by Pole Height:

6 m Height: 6,000 lumens
8 m Height: 8,000 lumens
10 m Height: 10,000 lumens
12 m Height: 12,000 lumens
14 m Height: 15,000 lumens
16 m Height: 18,000 lumens
20 m Height: 25,000 lumens

Selecting the appropriate lumens and watts can significantly enhance both lighting quality and energy efficiency. For detailed guidance and examples, please refer to the link: Lumens vs watts: lumens to watts conversion chart

Solar Security Light lux level standard

Lux signifies the actual brightness of illumination, measuring light flux per unit area, and is commonly used to assess lighting effectiveness and suitability.

Highways:

First-class and Second-class: 20 lx (low) / 30 lx (high), uniformity: 0.4.
Third-class: 15 lx (low) / 20 lx (high), uniformity: 0.4.
Fourth-class: 10 lx (low) / 15 lx (high), uniformity: 0.3.

Values apply to asphalt; concrete requirements can be reduced by up to 30%.

Urban Roads:

Expressways and Main Roads: 20 lx (low) / 30 lx (high), uniformity: 0.4.
Secondary Roads: 15 lx (low) / 20 lx (high), uniformity: 0.4.
Side Roads: 10 lx (low) / 15 lx (high), uniformity: 0.3.

Rural Roads:

Primary Roads: 10 lx (low) / 15 lx (high), uniformity: 0.3.
Side Streets and Lanes: 5 lx (low) / 8 lx (high).
Public Activity Squares: 10 lx (low) / 15 lx (high).

For more details, please refer to the link: [What is Lux in Lighting? Solar Street Lighting Lux Level standard]

Choosing the Right Color Temperature for Solar Security Light

Choosing the right color temperature for solar street lights is crucial for achieving the desired ambiance and visibility. Color temperature is measured in Kelvin (K) and affects how light appears; warmer temperatures (below 3000K) emit a yellowish light, creating a cozy atmosphere, while cooler temperatures (above 5000K) produce a bluish-white light that enhances visibility and safety.

When selecting the color temperature for solar street lights, the following standards are worth considering:

Road lighting color temperature suggestions:
Highway lighting: not more than 5000K, usually choose low and medium color temperature, but in some projects can be used 5700K or higher.

Airport road lighting: no more than 4000K, glare control lens should be added.

Residential road lighting: Low to medium color temperature is recommended, usually kept below 4000K.

Rain and fog road lighting: it is recommended to use low color temperature lamps, the recommended range is 2700K-3500K.

Road lighting in commercial areas: High color rendering index (CRI), low to medium color temperature light sources are recommended.

Parking lot lighting: 5700K-6500K color temperature is recommended.

Garden and industrial lighting: Warm color temperature 2700K-3000K is recommended to create a warm and relaxing atmosphere.

For more details, please refer to the link: [Choosing the Right Color Temperature for Your Solar Street Light Project]

How to choose solar street light

After understanding the basic parameters of solar street lights, we can determine the appropriate height and spacing to determine the required quantity according to the project application scenario and the required standards of the project, and then choose the appropriate brightness of solar street lights, pole height, battery type, etc.

How to calculate the height and distance of solar street light?

Installation Distance Guidelines for Street Lights

Road Width: 3-4m; Pole Height: 3-4m
Distance Between Poles: 10m
Road Width: 5-7m; Pole Height: 5-7m
Distance Between Poles: 10-25m
Road Width: 8-12m; Pole Height: 8-12m
Distance Between Poles: 30-40m
Main Traffic Arteries (20m wide); Pole Height: 12-14m
Distance Between Poles: At least 40m

For further details, please refer to the link: [Solar Street Light Height and Distance Spacing Calculation]

What battery is best for All in one solar street light?

Lithium iron phosphate battery (LiFePO4): Despite the higher price, it provides higher energy density, longer service life (usually up to 8-10 years) and better stability, suitable for solar street lights.
NiMH battery (NiMH): environmental protection is better, but more maintenance, suitable for high energy consumption equipment, not suitable for low power recycling of solar lamps.
Nickel-cadmium batteries (NiCd): Despite their low price, they are not recommended for solar street lights because of the “memory effect” and toxicity problems.
Lead-acid batteries: although low cost and stable voltage, but large volume, short service life, frequent maintenance.
Gel cells: A modified version of lead-acid batteries that performs better but may be more expensive and suitable for extreme climatic conditions.

For further reading, please refer to the link: [Solar Street Lights Battery Comprehensive guide]

How to choose solar street lamp pole?

Material Requirements:

The material of solar light poles directly impacts their lifespan.
Commonly used materials like Q230 steel are susceptible to corrosion, so they are often galvanized for enhanced corrosion resistance.
Hot-dip galvanized poles offer better corrosion protection compared to cold-dip galvanized ones.
Some poles are made of stainless steel or undergo anodizing for superior corrosion resistance, albeit at a higher cost.

Wall Thickness Requirements:

Besides material, wall thickness is crucial for wind resistance and load-bearing capacity.
Wall thickness should be determined based on the specific installation scenario to ensure the pole’s longevity.
Recommended wall thickness varies based on pole height:
- 2-4m poles: Minimum 2.5cm
- 4-9m poles: Minimum 4-4.5cm
- 8-15m poles: Minimum 6cm
Areas prone to strong winds may require thicker wall thickness for added durability.

Considering these details, users can select solar light poles with suitable materials and wall thickness to ensure longevity and reliability based on their budget and installation requirements.

For further reading, please refer to the link: [Guide to Selecting Solar Street Light Poles]

Solar street light with cctv camera Benefits

Self-Sufficient: Solar street lights require no external power supply, reducing dependence on the grid and lowering operational costs.
Easy Installation: Each light functions as an independent system, requiring only stainless steel screws to secure it to a concrete base, making installation quick and straightforward.
Low Maintenance Cost: With no external wiring and fewer moving parts, solar street lights incur lower maintenance costs and operate more reliably.
High Safety: With low voltage, there are no strict insulation concerns, ensuring absolute safety for humans and animals.
Energy Efficiency and Environmental Protection: Utilizing solar energy prevents waste of traditional non-renewable resources, aligning with modern demands for energy-saving and environmental protection.
Significant Economic Benefits: By reducing electricity and maintenance expenses, long-term usage costs are low, offering high economic returns.
Enhanced Safety: The integration of CCTV cameras provides not only nighttime illumination but also real-time monitoring of road conditions, increasing road safety.
Environmental Aesthetics: The attractive design of solar street lights enhances urban images, promoting a city’s commitment to energy conservation and renewable energy.
Applicable to Various Scenarios: Suitable for urban roads, rural highways, expressways, and parking lots, these lights can be adapted to different environments.
Intelligent Management: With MPPT (Maximum Power Point Tracking) technology, the controller can capture more current during cloudy or rainy days, improving energy conversion efficiency and extending battery life.
Continuous Power Supply: Even during a continuous week of overcast weather, solar street lights can maintain proper illumination, ensuring the ongoing safety of roads and monitoring systems.
Pollution Reduction: Annually, these lights can save a significant amount of standard coal, reducing emissions of dust, carbon dioxide, sulfur dioxide, and nitrogen oxides, resulting in considerable environmental benefits.
