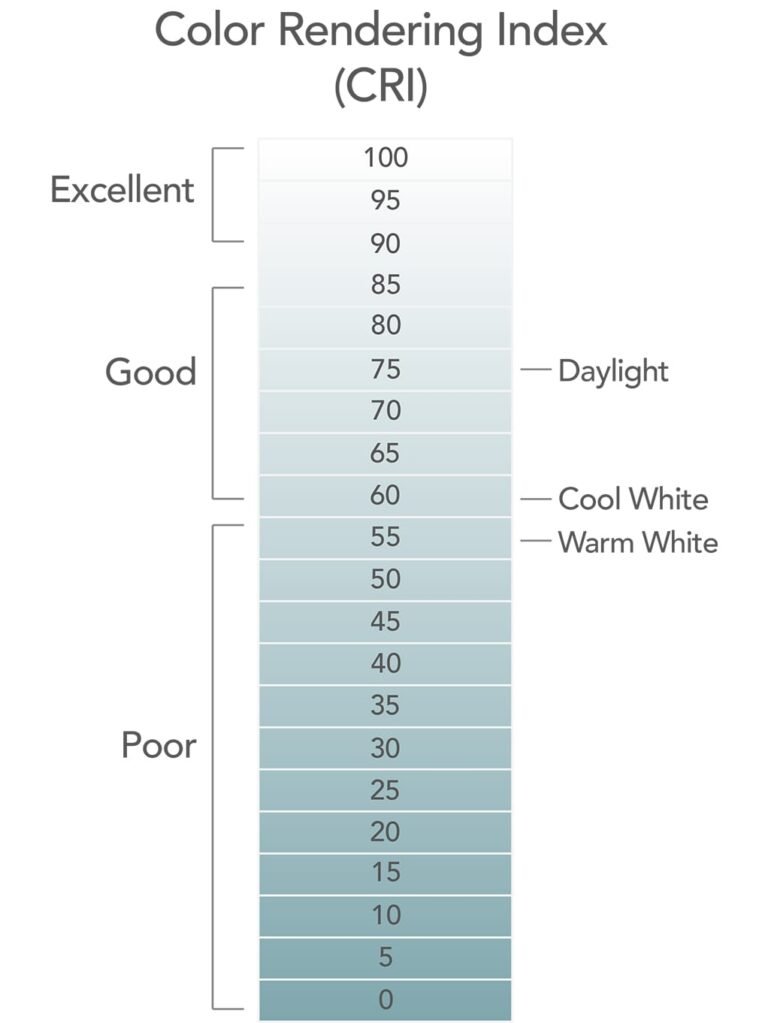

Understanding the Color Rendering Index (CRI) in Solar Street Lights
The Color Rendering Index (CRI) is a crucial parameter for evaluating the color rendering performance of light sources in solar street lights. A higher CRI means better color reproduction, making visual effects closer to natural light. This article analyzes the CRI values of different types of light sources and their effects on visual quality.
1. CRI Values of Different Light Sources
- Incandescent Light:Incandescent lamps have a CRI value close to 100, making them one of the best light sources for color rendering. However, due to their low efficacy (about 15 lm/W) and short lifespan, they are rarely used in modern solar street lights.
- Fluorescent Light:Fluorescent lights typically have a CRI value ranging from 55 to 90. They have higher efficacy (about 60-75 lm/W), but their discontinuous spectrum can lead to poor color reproduction for certain shades.
- High-Pressure Sodium Light:High-pressure sodium lamps have a low CRI value, usually around 25. Although they provide high efficacy (about 100-150 lm/W), their poor color rendering can result in significant color distortion.
- LED Light:LEDs have a wide range of CRI values, varying from 60 to over 95. High-quality LEDs can achieve a CRI of 90 and above, with some manufacturers claiming CRI values as high as 98. Their efficacy is also very high, typically ranging from 100 to 150 lm/W or even more.
2. Impact of CRI on Visual Effect
- CRI 60-70: Displays poor color rendering, resulting in unnatural object colors, suitable for scenes where color accuracy is not critical.
- CRI 70-80: Offers acceptable color rendering, suitable for general street lighting and public spaces, providing basic visual comfort.
- CRI 80-90: Offers very good color rendering, with object colors appearing close to those under natural light, suitable for commercial areas, residential zones, and parks.
- CRI 90 and above: Provides excellent color rendering, nearly matching the quality of natural light, suitable for museums, art galleries, and medical facilities.
3. Selection in Practical Applications
- Major Roads and Highways: Due to high traffic volume and safety requirements, using LEDs with a CRI above 80 is recommended.
- Secondary Roads and Local Streets: These roads have lower traffic volumes but still require good visibility; LEDs with a CRI of 70-80 are recommended.
- Sidewalks, Commercial Streets, and Residential Areas: Areas with higher demands for color rendering and visual comfort should use LEDs with a CRI of 80-90.
4. Limitations of CRI
Using CRI to evaluate LED light sources has limitations. CRI is based on an average calculated from eight standard color samples, which may not fully reflect the color rendering quality of LED light sources. New standards such as CRI 2012 and CQS (Color Quality Scale) have been introduced to provide a more accurate assessment.
5. Verification with Examples
Research comparing fluorescent lights and LEDs found that the CRI 2012 metric is more reasonable for evaluating the color rendering of LED sources. In particular, fluorescent lights with a CRI between 70-90 showed consistency with current CRI values, while LEDs with a CRI between 30-50 saw significant improvements in the CRI 2012 assessment.
6. Recommendations
- For most applications, it is advisable to choose LED lights with a CRI above 80 to ensure good color reproduction and visual comfort.
- If the budget allows, choosing LEDs with a CRI above 90 is recommended, especially in situations where color rendering is critical.
- In addition to CRI, attention should be paid to other parameters like color temperature (recommended between 2700K-4000K), glare value (UGR), and efficacy to ensure lighting quality.
In summary, selecting the appropriate CRI for solar street lights should be based on specific application scenarios and requirements to ensure an excellent lighting experience. Choosing suitable LED lights and considering other relevant parameters will help enhance overall lighting quality.
